高壓液壓接頭在復雜的液壓系統(tǒng)中起著非常關鍵的作用，特別是在用于復雜多變操作的大型設備中。這些配件用于完成一個液壓回路的各種功能，對于同一設備的多個操作非常方便。配件通常用于給液壓回路提供彎曲或接頭；它可以彎曲到45度或90度，也可以僅用于小接頭或提供旋轉功能。
| 液壓接頭 | 名稱 | 型號 |
|---|---|---|
 | 英管外螺紋60°內錐面 BSP Male 60° cone seat | 12611 |
 | 英管外螺紋60° 內錐面或六角端面組合墊密封的雙用接頭 BSP male double use for 60° cone seat or bonded seal | 12611A |
 | 英錐管外螺紋平面 BSP Male Flat Seat | 13011(A) |
 | 英錐管外螺紋 BSP Male | 13011 |
 | 美制ORFS外螺紋平面O形圈密封 ORFS Male O-RING Seal | 14211 |
 | 美制JIC外螺紋74° 外錐面 JIC Male 74°Cone | 16711 |
 | 布錐管外螺紋 NPT Male | 15611 |
 | 日本公制外螺紋60° 外錐面 JIS Metric Male 60° Cone Seal | 18611 |
 | 公制外螺紋90°外錐面 Metric 90° Cone | 10811L |
 | 布錐管旋轉外螺紋 Npt Swivel Male | 15611SW |
 | 公制外螺紋24° 內錐面輕/重系列 Metric Male24° Cone Seat L.T./H.T. | 10411/10511 |
 | 公制內螺紋24°錐帶O型圈輕系列 Metirc Female24° Cone O-Ring L.T. | 20411T |
 | 45°公制內螺紋24°錐帶O型圈輕系列 45°Metric Female24°Cone O-Ring L.T. | 20441T |
 | 90°公制內螺紋24°錐帶O型圈輕系列 90°Metric Female24°Cone O-Ring L.T. | 20491T |
 | 公制內螺紋24°錐帶O型圈重系列 Metric Female24°Cone O-Ring H.T | 20511T |
 | 90°公制內螺紋24°錐帶O型圈重系列 90° Metric Female24° Cone O-Ring H.T | 20591T |
 | 美制JIC內螺紋74°內錐面 JIC Female74° Cone Seat | 26711 |
 | 45°美制JIC內螺紋74°內錐面 45° JIC Female74° Cone Seat | 26741 |
 | 90°美制JIC內螺紋74°內錐面 90° JIC Female74° Cone Seat | 26791 |
 | 英管內螺紋60°外錐面 BSP Female60° Cone | 22611 |
 | 45°英管內螺紋60°外錐面 45° BSP Female60° Cone | 22641 |
 | 90°英管內螺紋60°外錐面 90° BSP Female60° Cone | 22691 |
 | 美制ORFS內螺紋平面 ORFS Female Flat Seat | 24211T |
 | 45°美制ORFS內螺紋平面 45° ORFS Female Flat Seat | 24241T |
 | 90°美制ORFS內螺紋平面 90° ORFS Female Flat Seat | 24291 |
 | 英管內螺紋60°外錐面雙六角 BSP Female 60° ConeDouble Hexagon | 22611D |
 | 美制JIC內螺紋74°內錐面雙六角 JIC Female 74° Cone Seat Double Hexagon | 26711D |
 | 美制ORFS 內螺紋平面雙六角 ORFS Female Flat Seat Double Hexagon | 24211D |
 | 日本公制內螺旋60°內錐面 JIS Metric Female 60° Cone Seat | 28611 |
 | 日本英制內螺旋60°內錐面 JIS Gas Female 60° Cone Seat | 29611 |
 | 美制JIC內螺紋74°內錐面雙六角 45° JIC Female 74° Cone Seat Double Hexagon | 26741D |
 | 美制一體式接頭 Crimp Style Hydraulic Hose Fitting | 26711Y |
 | 90°美制一體式接頭 90°Crimp Style Hydraulic Hose Fitting | 26791Y |
 | 90°美制一體式接頭加長 90°Crimp Style Hydraulic Hose Fitting | 26791Y-L |
 | 帕克連體 Paker Standard | P20491 |
 | 公制內螺紋60°外錐面 Metric Female 60° Cone | 20611T |
 | 90°公制內螺紋60°外錐面 90° Metric Female 60° Cone | 20691T |
 | 國標公制內螺紋平面 Metric Female Flat Seat | 20211T |
 | 45°國標公制內螺紋平面 45°Metric Female Flat Seat | 20241T |
 | 90°國標公制內螺紋平面 90°Metric Female Flat Seat | 20291T |
 | 公制內螺紋74°內錐面 Metric Female 74° Cone Seat | 20711T |
 | 45°公制內螺紋74°內錐面 45°Metric Female 74° Cone Seat | 20741T |
 | 90°公制內螺紋74°內錐面 90°Metric Female 74° Cone Seat | 20791T |
 | SAE 法蘭 3000PSI/6000PSI SAE Flange 3000PSI/6000PSI | 87312 87612 |
 | 45°SAE 法蘭 3000PSI/6000PSI 45°SAE Flange 3000PSI/6000PSI | 87342 87642 |
 | 90°SAE法蘭 3000PSI/6000PSI 90°SAE Flange 3000PSI/6000PSI | 87392 87692 |
 | 90°SAE法蘭 3000PSI加長 90°SAE Flange 3000PSI | 87392L |
 | SAE法蘭 9000PSI SAE Flange 9000PSI | 87992 |
 | SAE 連體法蘭夾 3000PSI/6000PSI SAE Flange Clamps 3000PSI/6000PSI | FL SW |

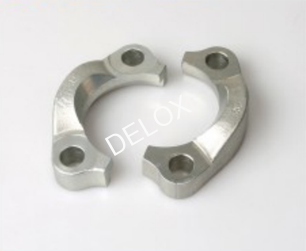

 | SAE 對開法蘭夾 3000PSI/6000PSI SAE Split Flange Clamps 3000PSI/6000PSI | FL FS |

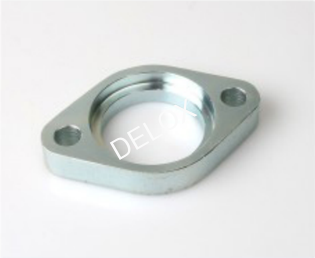

 | 菱形法蘭 Rhombic Flange Clamps | TX001 |

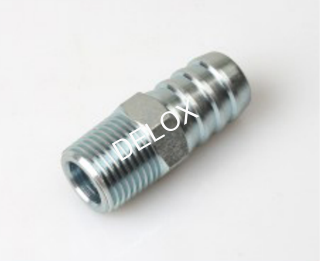

 | 低壓外絲 Low Pressure Male Fitting | TX004 |

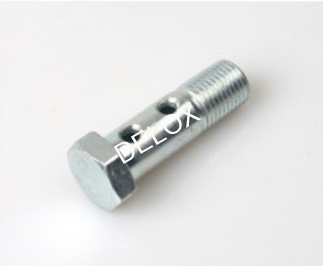

 | 公制鉸接螺栓 雙孔 Metric Bolt | 700M 雙孔 |
 | 公制鉸接螺栓 Metric Bolt | 700M |
 | 部標公制鉸接螺栓 JB Metric Bolt | 710M |

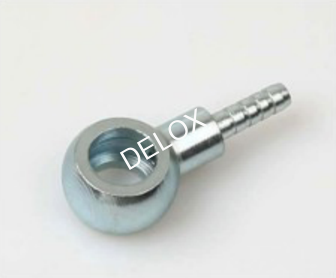

 | 低壓圓球 Low Pressure Metric Banjo | TX002 |

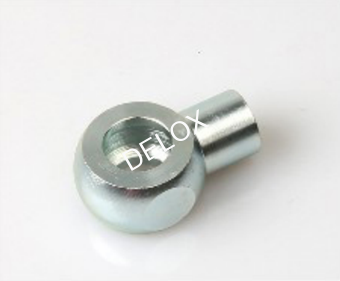

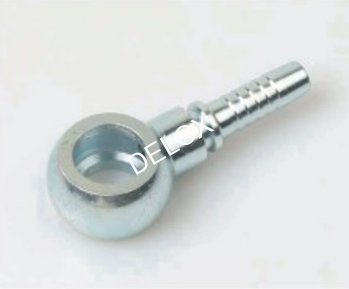

 | 焊接圓球 Welding Banjo Fitting | TX003 |
 | 公制鉸接體 Metric Banjo | 70011 |

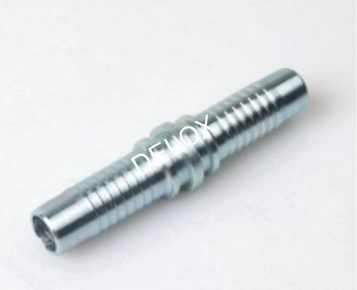

 | 雙面連接芯 Double Connector | 90011 |

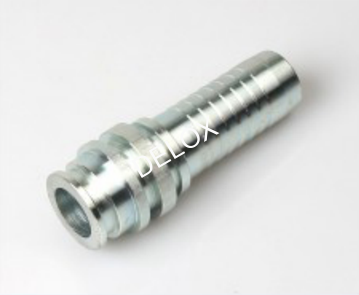

 | SAE標準礦用接頭 SAE Staplelok Male SAE | 67011 |

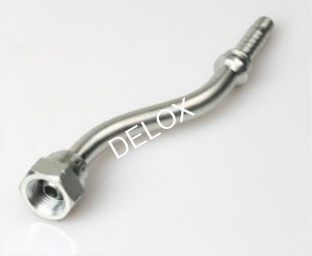

 | Z型 “Z” Type BSP Female Fitting | TX006 |

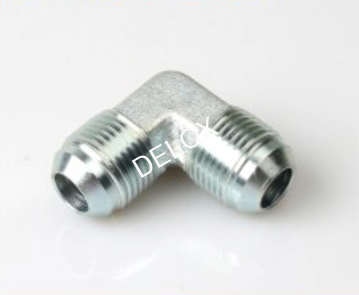

 | 90o彎美制JIC外螺紋74o外錐 90o Elbow JIC Male 74o Cone | 1J9 |
 | 90o彎英管外螺紋60o內錐/英椎管外螺紋 90o Elbow BSP Male 60o Seat/ BSPT Male | 1BT9 |
 | 90o公制外螺紋24o內錐面輕/重系列 90o Metric Male 24o Cone Seat L.T./H.T. | 1C9 |
 | 90o彎英管外螺紋60o內錐/ 英管內螺紋60o外錐 90oElbow BSP Male 60o Seat/ BSP Female 60o Cone | 2B9 |

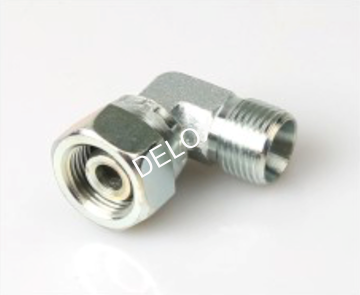

 | 90o彎公制外螺紋內螺紋轉換接頭24o錐大小頭 90o Elbow Reducer Tube Adapter with Swivel Nut 24oCone | 2C9 |
 | 英管外螺紋60o內錐或六角端面用組合墊密封/英管內螺紋60o外錐 BSP Male Doulble Use for 60o Seat or Bonded Seal Plug | 2B |

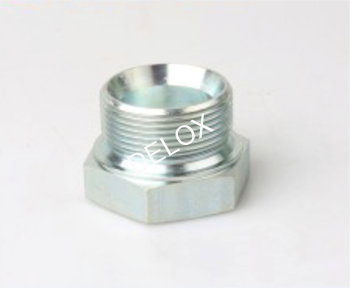

 | 英管外螺紋60o內錐或六角端面用組合墊密封堵頭 BSP Male Doulble Use for 60o Seat or Bonded Seal Plug | 4B |
 | 公制外螺紋24o內錐面堵頭 Metric Male 24o Cone Seat Plug | 4C |
 | 美制JIC外螺紋74o外錐堵頭 JIC Male 74o Cone Plug | 4J |
 | 美制ORFS外螺紋O型圈平面密封堵頭 ORFS Male O-Ring Plug | 4F |
 | 英管外螺紋60o內錐或六角端面用組合墊密封/英管內螺紋ISO1179 BSP Male Double Use for 60o Seat or Bonded Seal/ BSP Female ISO 1179 | 5B |

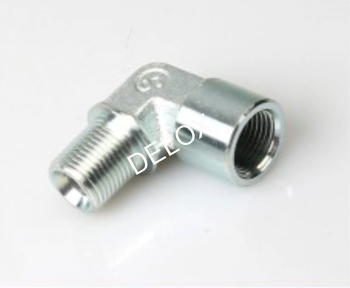

 | 90o彎美制布錐管外螺紋/布椎管內螺紋 90o Elbow NPT Male/ NPT Female | 5N9 |
 | 英管外螺紋60o內錐過板接頭 BSP Male 60o Seat Bulkhead | 6B |

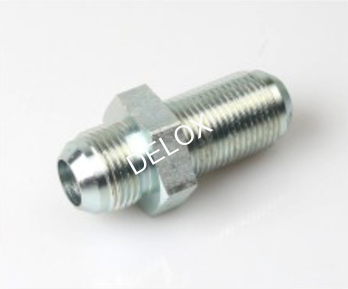

 | 美制JIC外螺紋74o外錐過板接頭 JIC Male 74oCone Bulkhead | 6J |
 | 直通過板接頭 Straight Bulkhead Fittings | 6C |
 | 英管內螺紋ISO1179 BSP Female ISO 1179 | 7B |
 | 公制內螺紋24o 內錐面堵頭 Matric Female 24o Cone Seat Plug | 9C |
 | 英管內螺紋60o外錐堵頭 BSP Female 60o Cone Plug | 9B |
| 更多規(guī)格，請聯系德璐氏的客服工程師。400-928-6878 | ||
